TSLOTS TS40-40LM 40mmx40mm 8mm Aluminum Extrusion
$132.51

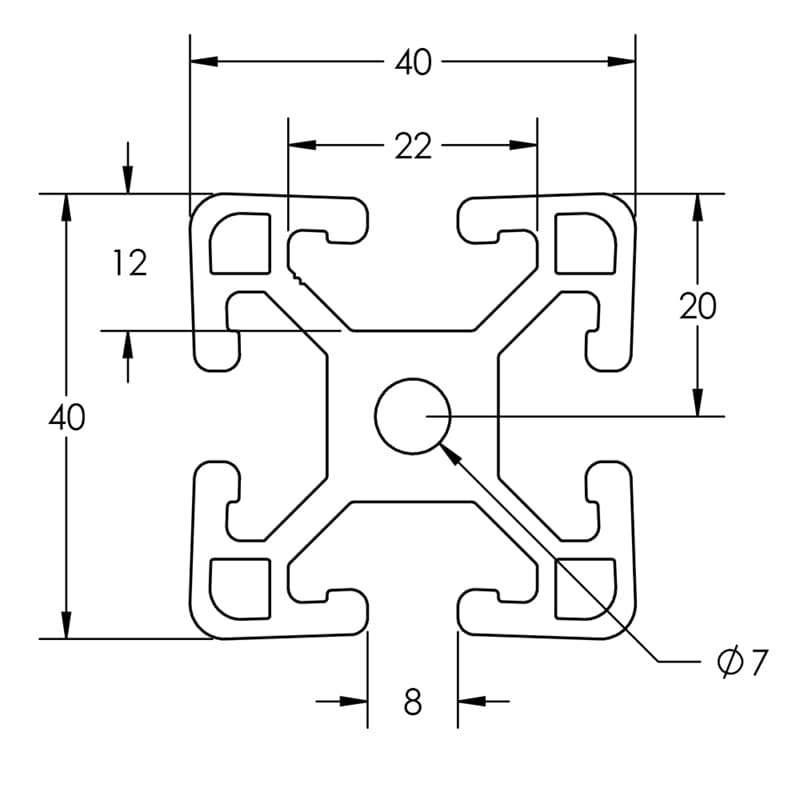

40 Series Lite t-slotted rail, 6063-T6 anodized aluminum alloy, cut to length, 40x40mm profile, slot size 8.
Product Details
Specifications:
Length: 240″ (6 m)
Weight: 1.242 lbs/ft (1.848 kg/m)
Estimated Area: 1.050 in2 (6.774 cm2)
Moment of Inertia: Ix=".236" in4 (9.823 cm4); Iy=".236" in4 (9.823 cm4)
Length: 240″ (6 m)
Weight: 1.242 lbs/ft (1.848 kg/m)
Estimated Area: 1.050 in2 (6.774 cm2)
Moment of Inertia: Ix=".236" in4 (9.823 cm4); Iy=".236" in4 (9.823 cm4)
Cut to Length Part # 660003 Access Hole Part # 660028
Anchor Fastener Part # 660020 5/16-18 Tap Part # 660034
M8 Tap Part # 660033
Compatibility is a big deal, we know. That’s why we’ve made it a point to ensure all our
aluminum extrusion and hardware products are compatible with all the other major suppliers.
Compatible with 80/20 extrusion # 40-4040-Lite
