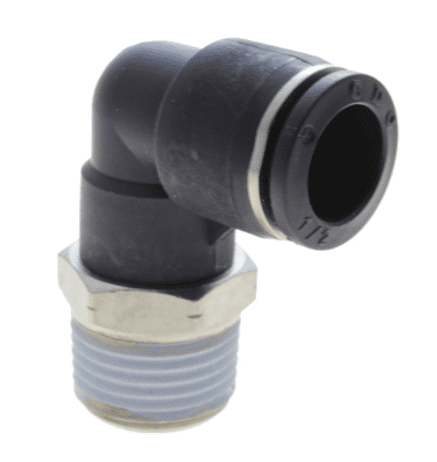

Fitting, PTC, Male Hex Elbow, 5/32" OD x 1/4" Male NPT - Part # PL5/32-N2
$2.45
Fitting, PTC, Male Hex Elbow, 5/32" OD x 1/4" Male NPT, sold in bags of 10
Product Details
Swivel Male Elbows are configured in a 90° shape with an external hex for installation.
The swivel body enables flexibility during both installation and operation.
| Max Working Pressure | 150 psi |
| Temperature Range | 32ºF to 140°F |
| Vacuum Rating | 29.5" HG |
| Metal Body Material | Nickel-Plated Brass |
| Resin Body Material | PBT Resin |
| O-Ring | NBR (Buna-N) |
| Grip Ring | Stainless Steel |
| Release Ring | Acetal Plastic |
| Media | Compressed Air; Inert Gases |
