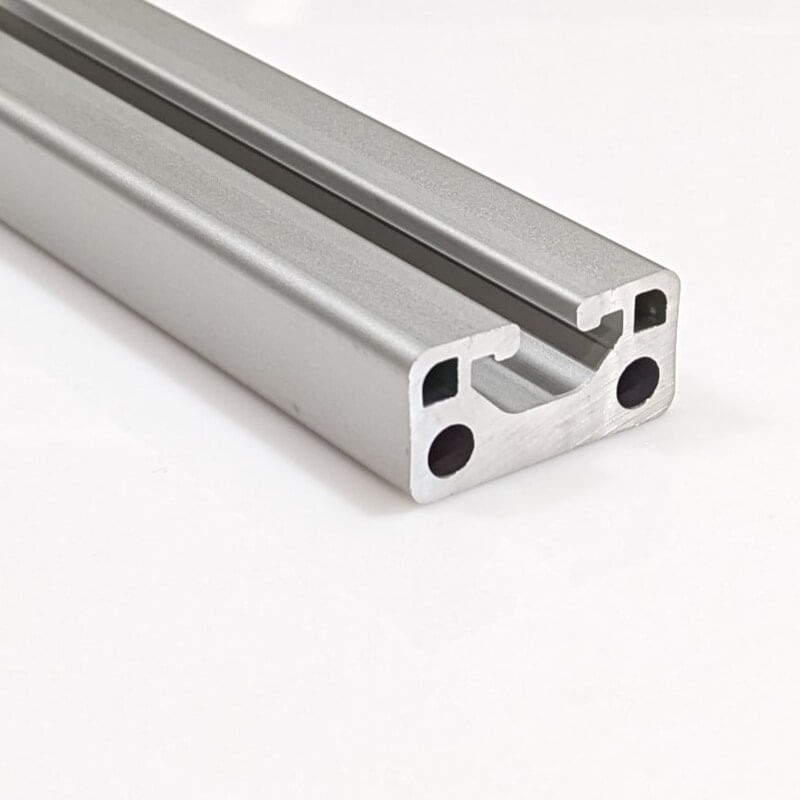

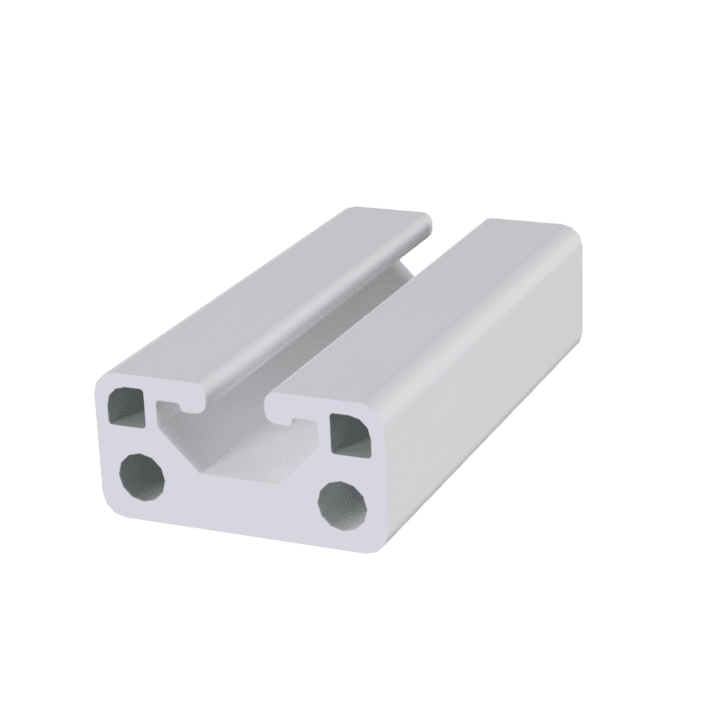

TSLOTS TS40-20 M 40mm x 20mm 8.1mm Aluminum Extrusion Part # - 650053
$78.40
40mm x 20mm profile, 8.1mm slot size, 145 in. stick length
Product Details
The 40mm x 20mm extrusion can be used as a door rail or a support for clamps, valves, etc. It can also be used as a handrail.
Length: 145″
Weight: 0.879 lbs/ft
Estimated Area: 0.733 in2
Moment of Inertia: Ix="0.042" in4; Iy="0.170" in4
Weight: 0.879 lbs/ft
Estimated Area: 0.733 in2
Moment of Inertia: Ix="0.042" in4; Iy="0.170" in4
Machine Services
Cut to Length Part #: 660003
Access Hole Part #: 660028
Anchor Fastener Part # 660020
Tap M8 Part #: 660027
Compatibility is a big deal, we know. That’s why we’ve made it a point to ensure all our
aluminum extrusion and hardware products are compatible with all the other major suppliers.
