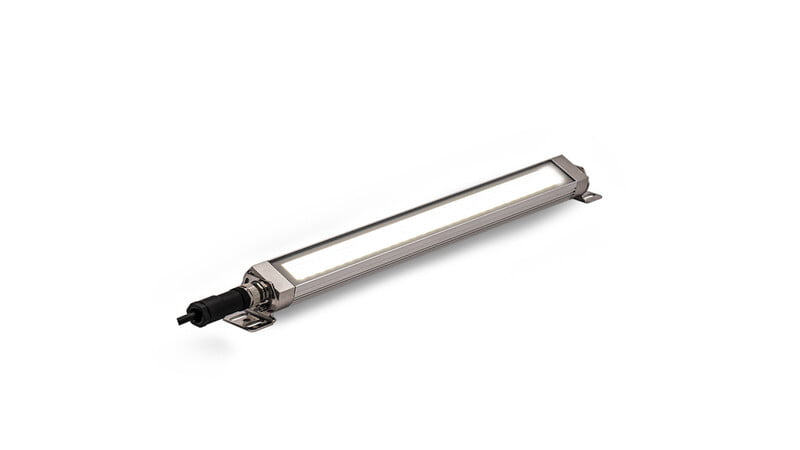

CCEA COMPACT ALPHA LED Machine Light - Part # CA0321S05

$212.73
CO.ALPHA, 19.84''(504 mm), 90°, 18W, 24Vdc, CABLE 10ft (3mt)
Lead Time
3 weeks
Color
Natural Aluminium
Compatible with
MACH LED PLUS 40 WALDMANN
Material
Anodized aluminum
Quantity
Add to Cart
Specifications
LED Lighting
  • Application Type
    Machine Lighting
  • Mounting
    Surface Mount
  • Extension Length - mm
    504
  • Extension Length - inches
    19.84
  • Power Supply
    24 VDC
  • Power Usage Watt
    18
  • Connection Type
    Cable 3 m (10 ft) free terminals
  • Color Temperature Wavelength
    5000 K
  • CRI
    80
  • Luminous Flux
    1800
  • Efficiency
    100
  • Light Beam Angle
    90°
  • Housing
    Anodized aluminum
  • Front Protection
    Tempered glass
  • IP Rating
    IP67
  • Impact Resistance
    IK06
  • Operating Temperature
    -20 °C to + 45 °C (-04 °F to +113 °F)
  • Digital Input
    PWM
  • Housing Color
    Natural Aluminium
  • Approval Agency
    cURus comply with UL1598, CSA C22.2, CE,RoHs
