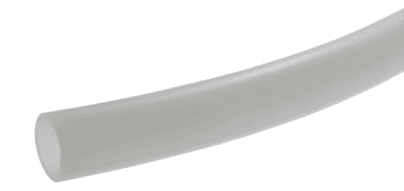

1/4″ x 1/8″ x 100′ PTFE Tubing -Part # PTFE14-18ANA
$552.11
1/4″ x 1/8″ x 100′ PTFE Tubing
Product Details
Mercury™ PTFE Tubing is a great choice for high heat and/or advanced chemical resistance applications.
- Does not Support Combustion
- Excellent Dielectric Properties
- Bio-compatible
- Chemically Inert
- Widest temperature Range
| Temperature Range | -454ºF to 500°F |
| Vacuum Rating | 28" HG |
| Tolerance(1/8”) | +/- .004" |
| Tolerance(1/4” to 3/8”) | +/- .005" |
| Hardness | Shore 55D |
| Working Pressure | 372psi |
| Safety Factor | 4:1 |
| Material | PTFE (Polytetraflouroethylene) |
| Media | Gases & Liquids |
| Tariff Code | 3917.32.0000 |
| Compliance | UL 94 VO & ASTM – D3295 & FDA Compliant |
